To add a new custom tab to a product page you need to follow these steps:
- Create a new module:
module.xml:
|
1 2 3 4 5 |
<?xml version="1.0"?> <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../../lib/internal/Magento/Framework/Module/etc/module.xsd"> <module name="BelVG_AddTab" setup_version="1.0.0"> </module> </config> |
registration.php:
|
1 2 3 4 5 6 |
<?php \Magento\Framework\Component\ComponentRegistrar::register( \Magento\Framework\Component\ComponentRegistrar::MODULE, 'BelVG_AddTab', __DIR__ ); |
- Create a new product attribute. We are going to do this with the help of the InstallData.php script
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 |
<?php /* app/code/BelVG/AddTab/Setup/InstallData.php */ namespace BelVG\AddTab\Setup; use Magento\Eav\Setup\EavSetup; use Magento\Eav\Setup\EavSetupFactory; use Magento\Framework\Setup\InstallDataInterface; use Magento\Framework\Setup\ModuleContextInterface; use Magento\Framework\Setup\ModuleDataSetupInterface; /** * @codeCoverageIgnore */ class InstallData implements InstallDataInterface { /** * EAV setup factory * * @var EavSetupFactory */ private $eavSetupFactory; /** * Init * * @param EavSetupFactory $eavSetupFactory */ public function __construct(EavSetupFactory $eavSetupFactory) { $this->eavSetupFactory = $eavSetupFactory; } /** * {@inheritdoc} * @SuppressWarnings(PHPMD.ExcessiveMethodLength) */ public function install(ModuleDataSetupInterface $setup, ModuleContextInterface $context) { /** @var EavSetup $eavSetup */ $eavSetup = $this->eavSetupFactory->create(['setup' => $setup]); /** * Add attributes to the eav/attribute */ $eavSetup->addAttribute( \Magento\Catalog\Model\Product::ENTITY, 'test_tab_attribute', [ 'group' => 'Product Details', 'type' => 'text', 'input' => 'textarea', 'backend' => '', 'frontend' => '', 'label' => 'Test Tab Attribute', 'class' => '', 'source' => '', 'global' => \Magento\Eav\Model\Entity\Attribute\ScopedAttributeInterface::SCOPE_GLOBAL, 'visible' => true, 'required' => false, 'user_defined' => false, 'default' => 0, 'searchable' => false, 'filterable' => false, 'comparable' => false, 'visible_on_front' => false, 'used_in_product_listing' => true, 'unique' => false, 'apply_to' => '' ] ); } } |
- Add the new custom tab to a product page with the help of the catalog_product_view.xml file
|
1 2 3 4 5 6 7 8 9 10 11 12 |
<?xml version="1.0"?> <page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd"> <body> <referenceBlock name="product.info.details"> <block class="Magento\Catalog\Block\Product\View" name="new.tab" template="BelVG_AddTab::new_tab.phtml" group="detailed_info" > <arguments> <argument translate="true" name="title" xsi:type="string">New Tab</argument> </arguments> </block> </referenceBlock> </body> </page> |
- Then create new_tab.phtml template where we need to output our attribute
|
1 2 3 4 5 |
<?php /** @var \Magento\Catalog\Block\Product\View $block */ $product = $block->getProduct(); ?> <span style="color: #0000ff"><?php echo $product->getData('test_tab_attribute'); ?></span> |

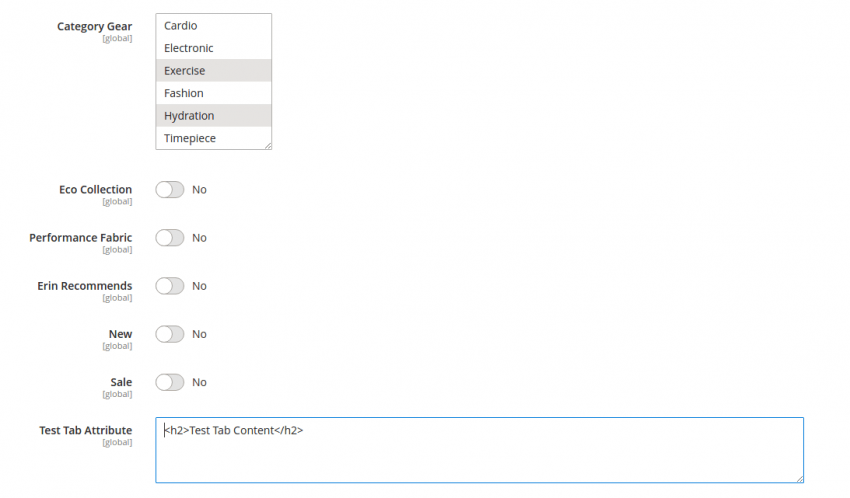

- Change the attribute value on the Product Edit page
And here we get a new tab on the required page.
