PDF in Prestashop

To generate PDF documents Prestashop uses two libraries: FPDF and TCPDF.

FPDF library possesses the following attributes:

Choice of measure unit, page format and margins
Page header and footer management
Automatic page break
Automatic line break and text justification
Image support (JPEG, PNG and GIF)
Colors
Links
TrueType,
Type1 and encoding support
Page compression

You can find more information about FPDF on the official php-library page.

TCPDF library has the following features:

no external libraries are required for the basic functions;
all standard page formats, custom page formats, custom margins and units of measure;
UTF-8 Unicode and Right-To-Left languages;
TrueTypeUnicode, OpenTypeUnicode, TrueType, OpenType, Type1 and CID-0 fonts;
font subsetting;
methods to publish some XHTML + CSS code, Javascript and Forms;
images, graphic (geometric figures) and transformation methods;
supports JPEG, PNG and SVG images natively, all images supported by GD (GD, GD2, GD2PART, GIF, JPEG, PNG, BMP, XBM, XPM) and all images supported via ImagMagick (http: www.imagemagick.org/www/formats.html)
1D and 2D barcodes: CODE 39, ANSI MH10.8M-1983, USD-3, 3 of 9, CODE 93, USS-93, Standard 2 of 5, Interleaved 2 of 5, CODE 128 A/B/C, 2 and 5 Digits UPC-Based Extention, EAN 8, EAN 13, UPC-A, UPC-E, MSI, POSTNET, PLANET, RMS4CC (Royal Mail 4-state Customer Code), CBC (Customer Bar Code), KIX (Klant index – Customer index), Intelligent Mail Barcode, Onecode, USPS-B-3200, CODABAR, CODE 11, PHARMACODE, PHARMACODE TWO-TRACKS, Datamatrix ECC200, QR-Code, PDF417;
ICC Color Profiles, Grayscale, RGB, CMYK, Spot Colors and Transparencies;
automatic page header and footer management;
document encryption up to 256 bit and digital signature certifications;
transactions to UNDO commands;
PDF annotations, including links, text and file attachments;
text rendering modes (fill, stroke and clipping);
multiple columns mode;
no-write page regions;
bookmarks and table of content;
text hyphenation;
text stretching and spacing (tracking/kerning);
automatic page break, line break and text alignments including justification;
automatic page numbering and page groups;
move and delete pages;
page compression (requires php-zlib extension);
XOBject templates;
PDF/A-1b (ISO 19005-1:2005) support.

These libraries can be found in the folder with all other tools.

Usually, Prestashop generates PDF documents only for orders, invoices, refunds and other documents. For each type of document it uses its own class. All these classes are located in the directory classes/pdf.

Standard types of pdf-documents:

	const TEMPLATE_INVOICE = 'Invoice';
	const TEMPLATE_ORDER_RETURN = 'OrderReturn';
	const TEMPLATE_ORDER_SLIP = 'OrderSlip';
	const TEMPLATE_DELIVERY_SLIP = 'DeliverySlip';
	const TEMPLATE_SUPPLY_ORDER_FORM = 'SupplyOrderForm';

const TEMPLATE_INVOICE = 'Invoice';

const TEMPLATE_ORDER_RETURN = 'OrderReturn';

const TEMPLATE_ORDER_SLIP = 'OrderSlip';

const TEMPLATE_DELIVERY_SLIP = 'DeliverySlip';

const TEMPLATE_SUPPLY_ORDER_FORM = 'SupplyOrderForm';

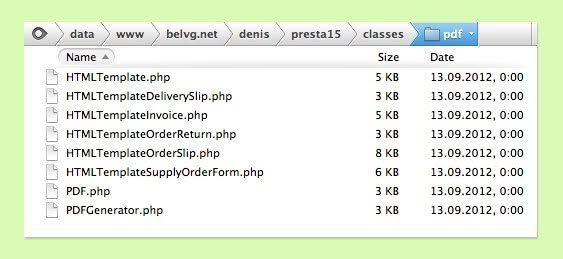

Each constant contains the template name of a particular class. All these classes are inherited from the abstract class HTMLTemplаte . This class is responsible for generating a document header, footer, store logo and address.

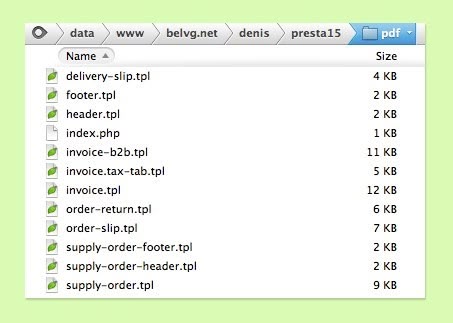

Templates of standard pdf-documents are located in the folder pdf :

Document content is generated with the help of HTML, which is generated via Smarty.

So, let us try to generate a PDF-document.

To do this we need to create a pdf-class. Let’s call it HTMLTemplateCustomPdf and put it into our module folder. As a result, we get a HTMLTemplateCustomPdf.php file with the following content:

Partner With Us Let's discuss how to grow your business. Get a Free Quote.

Talk to Andrey

<?php

class HTMLTemplateCustomPdf extends HTMLTemplate
{
	public $custom_model;

	public function __construct($custom_object, $smarty)
	{
		$this->custom_model = $custom_object;
		$this->smarty = $smarty;

		// header informations
		$id_lang = Context::getContext()->language->id;
		$this->title = HTMLTemplateCustomPdf::l('Custom Title');
		// footer informations
		$this->shop = new Shop(Context::getContext()->shop->id);
	}

	/**
	 * Returns the template's HTML content
	 * @return string HTML content
	 */
	public function getContent()
	{
		$this->smarty->assign(array(
			'custom_model' => $this->custom_model,
		));

		return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_content.tpl');
	}

	public function getLogo()
	{
		$this->smarty->assign(array(
			'custom_model' => $this->custom_model,
		));

		return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_logo.tpl');
	}

	public function getHeader()
	{
		$this->smarty->assign(array(
			'custom_model' => $this->custom_model,
		));

		return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_header.tpl');
	}

	/**
	 * Returns the template filename
	 * @return string filename
	 */
	public function getFooter()
	{
		return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_footer.tpl');
	}

	/**
	 * Returns the template filename
	 * @return string filename
	 */
	public function getFilename()
	{
		return 'custom_pdf.pdf';
	}

	/**
	 * Returns the template filename when using bulk rendering
	 * @return string filename
	 */
	public function getBulkFilename()
	{
		return 'custom_pdf.pdf';
	}
}

<?php

class HTMLTemplateCustomPdf extends HTMLTemplate

{

public $custom_model;

public function __construct($custom_object, $smarty)

{

$this->custom_model = $custom_object;

$this->smarty = $smarty;

// header informations

$id_lang = Context::getContext()->language->id;

$this->title = HTMLTemplateCustomPdf::l('Custom Title');

// footer informations

$this->shop = new Shop(Context::getContext()->shop->id);

}

/**

* Returns the template's HTML content

* @return string HTML content

public function getContent()

{

$this->smarty->assign(array(

'custom_model' => $this->custom_model,

));

return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_content.tpl');

}

public function getLogo()

{

$this->smarty->assign(array(

'custom_model' => $this->custom_model,

));

return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_logo.tpl');

}

public function getHeader()

{

$this->smarty->assign(array(

'custom_model' => $this->custom_model,

));

return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_header.tpl');

}

/**

* Returns the template filename

* @return string filename

public function getFooter()

{

return $this->smarty->fetch(_PS_MODULE_DIR_ . 'my_module/custom_template_footer.tpl');

}

/**

* Returns the template filename

* @return string filename

public function getFilename()

{

return 'custom_pdf.pdf';

}

/**

* Returns the template filename when using bulk rendering

* @return string filename

public function getBulkFilename()

{

return 'custom_pdf.pdf';

}

In this class there are implemented the methods which are responsible for specific parts of a pdf document.

Next we need to create templates for each part of a pdf document:

сustоm_templаte_ * .tpl

These templates we also need to put into the folder with our module. In these templates you can use any html and pull data from Smarty, which have been transferred in the following code:

$this->smarty->assign(array(
		'custom_model' => $this->custom_model,
	));

$this->smarty->assign(array(

'custom_model' => $this->custom_model,

));

So, to generate a document, use the following code:

require_once _PS_MODULE_DIR_ . 'my_module/HTMLTemplateCustomPdf.php';
$pdf = new PDF($custom_object, 'CustomPdf', Context::getContext()->smarty);
$pdf->render();

require_once _PS_MODULE_DIR_ . 'my_module/HTMLTemplateCustomPdf.php';

$pdf = new PDF($custom_object, 'CustomPdf', Context::getContext()->smarty);

$pdf->render();

Once the document is ready your browser will offer to download it.
