Creating a Shipping Module for Magento 2

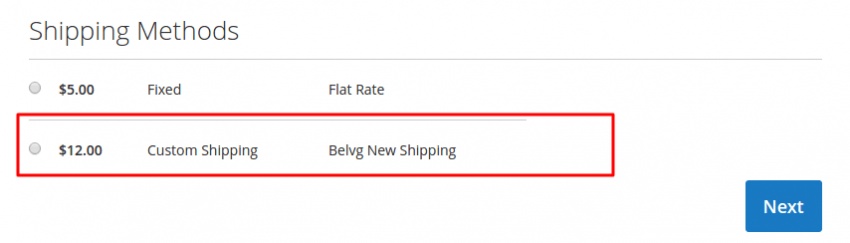

In this new article I’m going to show you how to create a custom shipping module for Magento 2 platform. Here below you can see the structure of the module:

1. At first let’s register our module in the system. In order to get that done we should create the following files:

app/code/BelVG/NewShipping/etc/module.xml

<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../../lib/internal/Magento/Framework/Module/etc/module.xsd">
   <module name="BelVG_NewShipping" setup_version="1.0.0">
   </module>
</config>

<?xml version="1.0"?>

</module>

</config>

and app/code/BelVG/NewShipping/registration.php

<?php
\Magento\Framework\Component\ComponentRegistrar::register(
   \Magento\Framework\Component\ComponentRegistrar::MODULE,
   'BelVG_NewShipping',
   __DIR__
);

<?php

\Magento\Framework\Component\ComponentRegistrar::register(

\Magento\Framework\Component\ComponentRegistrar::MODULE,

'BelVG_NewShipping',

__DIR__

);

Magento Custom Development

Take your online store to the next level with BelVG Magento Custom Development

Visit the page

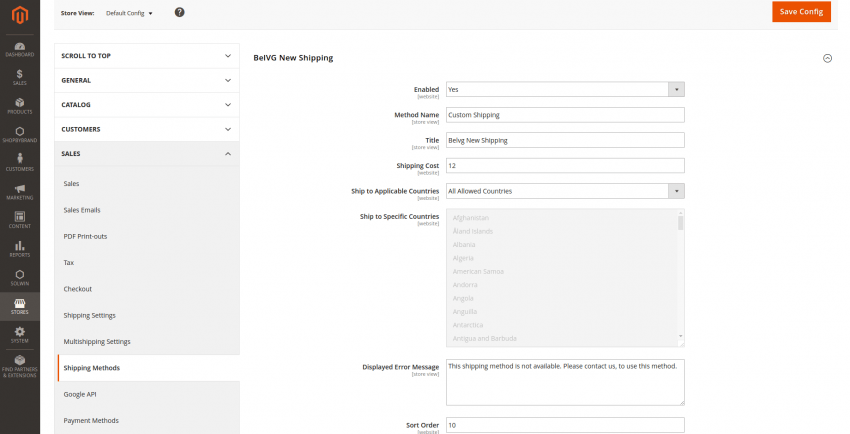

2. We should provide an ability for users to configure the new shipping method. That’s why we must create new fields in admin panel (Stores->Configuration->Sales->Shipping Methods). And that is what will help us:

app/code/BelVG/NewShipping/etc/adminhtml/system.php

<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../Magento/Config/etc/system_file.xsd">
   <system>
       <section id="carriers" translate="label" type="text" sortOrder="320" showInDefault="1" showInWebsite="1" showInStore="1">
           <group id="belvg_newshipping" translate="label" type="text" sortOrder="0" showInDefault="1" showInWebsite="1" showInStore="1">
               <label>BelVG New Shipping</label>
               <field id="active" translate="label" type="select" sortOrder="1" showInDefault="1" showInWebsite="1" showInStore="0">
                   <label>Enabled</label>
                   <source_model>Magento\Config\Model\Config\Source\Yesno</source_model>
               </field>
               <field id="title" translate="label" type="text" sortOrder="3" showInDefault="1" showInWebsite="1" showInStore="1">
                   <label>Title</label>
               </field>
               <field id="name" translate="label" type="text" sortOrder="3" showInDefault="1" showInWebsite="1" showInStore="1">
                   <label>Method Name</label>
               </field>
               <field id="price" translate="label" type="text" sortOrder="4" showInDefault="1" showInWebsite="1" showInStore="0">
                   <label>Shipping Cost</label>
                   <validate>validate-number validate-zero-or-greater</validate>
               </field>
               <field id="sallowspecific" translate="label" type="select" sortOrder="7" showInDefault="1" showInWebsite="1" showInStore="0">
                   <label>Ship to Applicable Countries</label>
                   <frontend_class>shipping-applicable-country</frontend_class>
                   <source_model>Magento\Shipping\Model\Config\Source\Allspecificcountries</source_model>
               </field>
               <field id="specificcountry" translate="label" type="multiselect" sortOrder="91" showInDefault="1" showInWebsite="1" showInStore="0">
                   <label>Ship to Specific Countries</label>
                   <source_model>Magento\Directory\Model\Config\Source\Country</source_model>
                   <can_be_empty>1</can_be_empty>
               </field>
               <field id="showmethod" translate="label" type="select" sortOrder="92" showInDefault="1" showInWebsite="1" showInStore="0">
                   <label>Show Method if Not Applicable</label>
                   <source_model>Magento\Config\Model\Config\Source\Yesno</source_model>
               </field>
               <field id="specificerrmsg" translate="label" type="textarea" sortOrder="95" showInDefault="1" showInWebsite="1" showInStore="1">
                   <label>Displayed Error Message</label>
               </field>
               <field id="sort_order" translate="label" type="text" sortOrder="100" showInDefault="1" showInWebsite="1" showInStore="0">
                   <label>Sort Order</label>
               </field>
           </group>
       </section>
   </system>
</config>

<label>BelVG New Shipping</label>

<label>Enabled</label>

<source_model>Magento\Config\Model\Config\Source\Yesno</source_model>

</field>

<label>Title</label>

</field>

<label>Method Name</label>

</field>

<label>Shipping Cost</label>

<validate>validate-number validate-zero-or-greater</validate>

</field>

<label>Ship to Applicable Countries</label>

<frontend_class>shipping-applicable-country</frontend_class>

<source_model>Magento\Shipping\Model\Config\Source\Allspecificcountries</source_model>

</field>

<label>Ship to Specific Countries</label>

<source_model>Magento\Directory\Model\Config\Source\Country</source_model>

<can_be_empty>1</can_be_empty>

</field>

<label>Show Method if Not Applicable</label>

<source_model>Magento\Config\Model\Config\Source\Yesno</source_model>

</field>

<label>Displayed Error Message</label>

</field>

<label>Sort Order</label>

</field>

</group>

</section>

</system>

</config>

3. Here we create configuration file of our new module:

app/code/BelVG/NewShipping/etc/config.php

<?xml version="1.0" encoding="UTF-8" ?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../Magento/Store/etc/config.xsd">
   <default>
       <carriers>
           <belvg_newshipping>
               <active>0</active>
               <model>BelVG\NewShipping\Model\Carrier\Shipping</model>
               <title>BelVG New Shipping</title>
               <name>Custom Shipping</name>
               <price>0</price>
               <sallowspecific>0</sallowspecific>
               <specificerrmsg>This shipping method is not available. Please contact us, to use this method.</specificerrmsg>
           </belvg_newshipping>
       </carriers>
   </default>
</config>

<?xml version="1.0" encoding="UTF-8" ?>

<belvg_newshipping>

<model>BelVG\NewShipping\Model\Carrier\Shipping</model>

<title>BelVG New Shipping</title>

<name>Custom Shipping</name>

<specificerrmsg>This shipping method is not available. Please contact us, to use this method.</specificerrmsg>

</belvg_newshipping>

</carriers>

</default>

</config>

4. The next step is creating a model of shipping method, where we can describe the logical circuitry of app/code/BelVG/NewShipping/Model/Carrier/Shipping.php. And here it is necessary to implement these two methods: collectRates and getAllowedMethods.

Partner With Us Let's discuss how to grow your business. Get a Free Quote.

Talk to Andrey

use Magento\Framework\App\Config\ScopeConfigInterface;
use Magento\Framework\DataObject;
use Magento\Shipping\Model\Carrier\AbstractCarrier;
use Magento\Shipping\Model\Carrier\CarrierInterface;
use Magento\Shipping\Model\Config;
use Magento\Shipping\Model\Rate\ResultFactory;
use Magento\Store\Model\ScopeInterface;
use Magento\Quote\Model\Quote\Address\RateResult\ErrorFactory;
use Magento\Quote\Model\Quote\Address\RateResult\Method;
use Magento\Quote\Model\Quote\Address\RateResult\MethodFactory;
use Magento\Quote\Model\Quote\Address\RateRequest;
use Psr\Log\LoggerInterface;
use Magento\Customer\Model\Session;
use Magento\Framework\App\RequestInterface;

class Shipping extends AbstractCarrier implements CarrierInterface
{
   /**
    * Carrier's code
    *
    * @var string
    */
   protected $_code = 'belvg_newshipping';

   /**
    * Whether this carrier has fixed rates calculation
    *
    * @var bool
    */
   protected $_isFixed = true;

   /**
    * @var ResultFactory
    */
   protected $_rateResultFactory;

   /**
    * @var MethodFactory
    */
   protected $_rateMethodFactory;

   public $_productRepo;

   protected $checkoutSession;

   protected $quoteIdMaskFactory;

   /**
    * @param ScopeConfigInterface $scopeConfig
    * @param ErrorFactory $rateErrorFactory
    * @param LoggerInterface $logger
    * @param ResultFactory $rateResultFactory
    * @param MethodFactory $rateMethodFactory
    * @param array $data
    */

   public function __construct(
       ScopeConfigInterface $scopeConfig,
       ErrorFactory $rateErrorFactory,
       LoggerInterface $logger,
       \Magento\Framework\App\Helper\Context $context,
       \Magento\Checkout\Model\Session $checkoutSession,
       \Magento\Customer\Model\Session $customerSession,
       \Magento\Framework\App\Http\Context $httpContext,
       \Magento\Quote\Model\QuoteIdMaskFactory $quoteIdMaskFactory,
       \Magento\Store\Model\StoreManagerInterface $storeManager,
       \Magento\Catalog\Model\ProductRepository $productRepo,
       ResultFactory $rateResultFactory,
       MethodFactory $rateMethodFactory,
       array $data = []
   ){
       $this->_rateResultFactory = $rateResultFactory;
       $this->_rateMethodFactory = $rateMethodFactory;
       $this->_productRepo = $productRepo;
       $this->checkoutSession = $checkoutSession;
       $this->customerSession = $customerSession;
       $this->_storeManager = $storeManager;
       $this->scopeConfig = $scopeConfig;
       $this->quoteIdMaskFactory = $quoteIdMaskFactory;
       parent::__construct($scopeConfig, $rateErrorFactory, $logger, $data);
   }

   public function collectRates(RateRequest $request)
   {
       if(!$this->getConfigFlag('active')){
           return false;
       }
       /** @var \Magento\Shipping\Model\Rate\Result $result */
       $result =  $this->_rateResultFactory->create();
       /** @var \Magento\Quote\Model\Quote\Address\RateResult\Method $method */
       $method = $this->_rateMethodFactory->create();
       $method->setCarrier($this->_code);
       $method->setCarrierTitle($this->getConfigData('title'));
       $method->setMethod($this->_code);
       $method->setMethodTitle($this->getConfigData('name'));
       $shippingPrice = $this->getConfigData('price');
       $method->setPrice($shippingPrice);
       $method->setCost($shippingPrice);

       $result->append($method);
       return $result;
   }

   /**
    * Get allowed shipping methods
    *
    * @return array
    */
   public function getAllowedMethods()
   {
       return [$this->_code => $this->getConfigData('name')];
   }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

use Magento\Framework\App\Config\ScopeConfigInterface;

use Magento\Framework\DataObject;

use Magento\Shipping\Model\Carrier\AbstractCarrier;

use Magento\Shipping\Model\Carrier\CarrierInterface;

use Magento\Shipping\Model\Config;

use Magento\Shipping\Model\Rate\ResultFactory;

use Magento\Store\Model\ScopeInterface;

use Magento\Quote\Model\Quote\Address\RateResult\ErrorFactory;

use Magento\Quote\Model\Quote\Address\RateResult\Method;

use Magento\Quote\Model\Quote\Address\RateResult\MethodFactory;

use Magento\Quote\Model\Quote\Address\RateRequest;

use Psr\Log\LoggerInterface;

use Magento\Customer\Model\Session;

use Magento\Framework\App\RequestInterface;

class Shipping extends AbstractCarrier implements CarrierInterface

{

/**

* Carrier's code

* @var string

protected $_code = 'belvg_newshipping';

/**

* Whether this carrier has fixed rates calculation

* @var bool

protected $_isFixed = true;

/**

* @var ResultFactory

protected $_rateResultFactory;

/**

* @var MethodFactory

protected $_rateMethodFactory;

public $_productRepo;

protected $checkoutSession;

protected $quoteIdMaskFactory;

/**

* @param ScopeConfigInterface $scopeConfig

* @param ErrorFactory $rateErrorFactory

* @param LoggerInterface $logger

* @param ResultFactory $rateResultFactory

* @param MethodFactory $rateMethodFactory

* @param array $data

public function __construct(

ScopeConfigInterface $scopeConfig,

ErrorFactory $rateErrorFactory,

LoggerInterface $logger,

\Magento\Framework\App\Helper\Context $context,

\Magento\Checkout\Model\Session $checkoutSession,

\Magento\Customer\Model\Session $customerSession,

\Magento\Framework\App\Http\Context $httpContext,

\Magento\Quote\Model\QuoteIdMaskFactory $quoteIdMaskFactory,

\Magento\Store\Model\StoreManagerInterface $storeManager,

\Magento\Catalog\Model\ProductRepository $productRepo,

ResultFactory $rateResultFactory,

MethodFactory $rateMethodFactory,

array $data = []

){

$this->_rateResultFactory = $rateResultFactory;

$this->_rateMethodFactory = $rateMethodFactory;

$this->_productRepo = $productRepo;

$this->checkoutSession = $checkoutSession;

$this->customerSession = $customerSession;

$this->_storeManager = $storeManager;

$this->scopeConfig = $scopeConfig;

$this->quoteIdMaskFactory = $quoteIdMaskFactory;

parent::__construct($scopeConfig, $rateErrorFactory, $logger, $data);

}

public function collectRates(RateRequest $request)

{

if(!$this->getConfigFlag('active')){

return false;

}

/** @var \Magento\Shipping\Model\Rate\Result $result */

$result = $this->_rateResultFactory->create();

/** @var \Magento\Quote\Model\Quote\Address\RateResult\Method $method */

$method = $this->_rateMethodFactory->create();

$method->setCarrier($this->_code);

$method->setCarrierTitle($this->getConfigData('title'));

$method->setMethod($this->_code);

$method->setMethodTitle($this->getConfigData('name'));

$shippingPrice = $this->getConfigData('price');

$method->setPrice($shippingPrice);

$method->setCost($shippingPrice);

$result->append($method);

return $result;

}

/**

* Get allowed shipping methods

* @return array

public function getAllowedMethods()

{

return [$this->_code => $this->getConfigData('name')];

}

Magento Extensions

Take your online store to the next level with BelVG Magento extensions

Visit the store

Whereafter we should enable the module by running the following commands:

php bin/magento module:enable -c BelVG_NewShipping

php bin/magento setup:upgrade

And here in admin panel we are able to configure the shipping method:

Stores-> Configuration-> Sales-> Shipping Methods

Partner With Us

Let's discuss how to grow your business. Get a Free Quote.

Talk to Andrey

And what concerns the frontend, during the order placement process a user can simply select our new shipping method.

Magento 2 Migration

Take your online store to the next level with BelVG Magento 2 Migration

Visit the page

Partner With Us Looking for a partner to grow your business? We are the right company to bring your webstore to success. Talk to Andrey

Tags:

Creating a Shipping Module for Magento 2

Magento Custom Development

Magento Extensions

Partner With Us

Magento 2 Migration

Table of contents:

Download Free Site
Audit Template

Post a new comment Cancel

Creating a Shipping Module for Magento 2

Get interesting stuff and updates to your email inbox

Magento Custom Development

Magento Extensions

Partner With Us

Magento 2 Migration

Table of contents:

Download Free Site Audit Template

Post a new comment Cancel

Download Free Site
Audit Template
