Collecting XML Theme Files in Magento 2

In order to get onto the issue, let’s have a look at the method loadFileLayoutUpdatesXml() of the class Magento\Framework\View\Model\Layout\Merge.

/**
	* Collect and merge layout updates from files
	*
	* @return \Magento\Framework\View\Layout\Element
	* @throws \Magento\Framework\Exception\LocalizedException
	*/
	protected function _loadFileLayoutUpdatesXml()
	{
       $layoutStr = '';
   	$theme = $this->_getPhysicalTheme($this->theme);
	...

/**

* Collect and merge layout updates from files

* @return \Magento\Framework\View\Layout\Element

* @throws \Magento\Framework\Exception\LocalizedException

protected function _loadFileLayoutUpdatesXml()

{

$layoutStr = '';

$theme = $this->_getPhysicalTheme($this->theme);

...

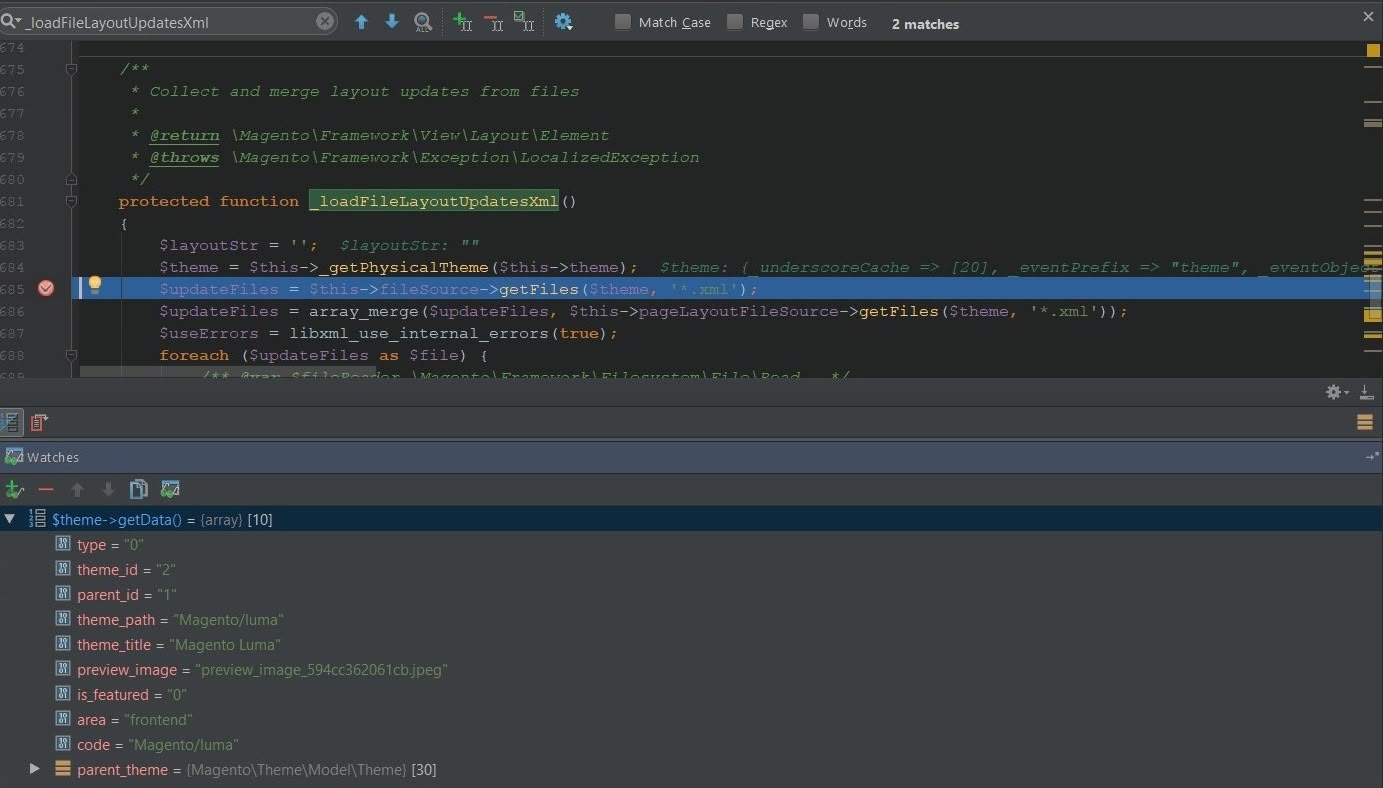

As for me, I use Magento 2.1.7, so in the picture, we can see the variable $theme that contains theme data. In my case, there are data concerning default theme “Magento Luma”.

$updateFiles = $this->fileSource->getFiles($theme, '*.xml');

1	$updateFiles = $this->fileSource->getFiles($theme, '*.xml');

Partner With Us

Let's discuss how to grow your business. Get a Free Quote.

Talk to Igor

On the stage, we get all XML files with the help of the method getFiles placed in the class \lib\internal\Magento\Framework\View\Layout\File\Collector\Aggregated. Let’s have a closer look at the method to comprehend how it works.

/**
* Retrieve files
*
* Aggregate layout files from modules and a theme and its ancestors
*
* @param ThemeInterface $theme
* @param string $filePath
* @return \Magento\Framework\View\File[]
*/
public function getFiles(ThemeInterface $theme, $filePath)
{
    $list = $this->fileListFactory->create();
       $list->add($this->baseFiles->getFiles($theme, $filePath));
    foreach ($theme->getInheritedThemes() as $currentTheme) {
           $list->add($this->themeFiles->getFiles($currentTheme, $filePath));
           $list->replace($this->overrideBaseFiles->getFiles($currentTheme, $filePath));
           $list->replace($this->overrideThemeFiles->getFiles($currentTheme, $filePath));
    }
    return $list->getAll();
}

/**

* Retrieve files

* Aggregate layout files from modules and a theme and its ancestors

* @param ThemeInterface $theme

* @param string $filePath

* @return \Magento\Framework\View\File[]

public function getFiles(ThemeInterface $theme, $filePath)

{

$list = $this->fileListFactory->create();

$list->add($this->baseFiles->getFiles($theme, $filePath));

foreach ($theme->getInheritedThemes() as $currentTheme) {

$list->add($this->themeFiles->getFiles($currentTheme, $filePath));

$list->replace($this->overrideBaseFiles->getFiles($currentTheme, $filePath));

$list->replace($this->overrideThemeFiles->getFiles($currentTheme, $filePath));

}

return $list->getAll();

}

Here we create a list where pathways should be added to XML files. As before, it’s not clear where Magento finds XML files. Let’s define what is the method getFiles of the class /lib/internal/Magento/Framework/View/File/Collector/Decorator/ModuleDependency makes:

/**
* Retrieve view files, sorted by the priority of modules they belong to
*
* @param ThemeInterface $theme
* @param string $filePath
* @return \Magento\Framework\View\File[]
*/
public function getFiles(ThemeInterface $theme, $filePath)
{
    $result = $this->subject->getFiles($theme, $filePath);
       usort($result, [$this, 'compareFiles']);
    return $result;
}

/**

* Retrieve view files, sorted by the priority of modules they belong to

* @param ThemeInterface $theme

* @param string $filePath

* @return \Magento\Framework\View\File[]

public function getFiles(ThemeInterface $theme, $filePath)

{

$result = $this->subject->getFiles($theme, $filePath);

usort($result, [$this, 'compareFiles']);

return $result;

}

As you can see, the method is considered as significant and simple. So we should learn one more method getFiles of the class /lib/internal/Magento/Framework/View/File/Collector/Decorator/ModuleOutput:

Partner With Us Let's discuss how to grow your business. Get a Free Quote.

Talk to Igor

/**
* Retrieve files
*
* Filter out theme files that belong to inactive modules or ones explicitly configured to not produce any output
*
* @param ThemeInterface $theme
* @param string $filePath
* @return \Magento\Framework\View\File[]
*/
public function getFiles(ThemeInterface $theme, $filePath)
{
    $result = [];
    foreach ($this->subject->getFiles($theme, $filePath) as $file) {
        if ($this->moduleManager->isOutputEnabled($file->getModule())) {
            $result[] = $file;
        }
    }
    return $result;
}

/**

* Retrieve files

* Filter out theme files that belong to inactive modules or ones explicitly configured to not produce any output

* @param ThemeInterface $theme

* @param string $filePath

* @return \Magento\Framework\View\File[]

public function getFiles(ThemeInterface $theme, $filePath)

{

$result = [];

foreach ($this->subject->getFiles($theme, $filePath) as $file) {

if ($this->moduleManager->isOutputEnabled($file->getModule())) {

$result[] = $file;

}

return $result;

}

Magento 2 Development

Take your online store to the next level with BelVG Magento 2 Development

Visit the page

As it is mentioned in the code, from the list of all modules we leave only active. Let’s continue reviewing the method getFiles of the class Magento/Framework/View/File/Collector/Base:

/**
* Retrieve files
*
* @param \Magento\Framework\View\Design\ThemeInterface $theme
* @param string $filePath
* @return \Magento\Framework\View\File[]
*/
public function getFiles(ThemeInterface $theme, $filePath)
{
    $result = [];
       $sharedFiles = $this->componentDirSearch->collectFilesWithContext(
        ComponentRegistrar::MODULE,
           "view/base/{$this->subDir}{$filePath}"
    );
    foreach ($sharedFiles as $file) {
           $result[] = $this->fileFactory->create($file->getFullPath(), $file->getComponentName(), null, true);
    }
    $area = $theme->getData('area');
       $themeFiles = $this->componentDirSearch->collectFilesWithContext(
           ComponentRegistrar::MODULE,
           "view/{$area}/{$this->subDir}{$filePath}"
    );
    foreach ($themeFiles as $file) {
           $result[] = $this->fileFactory->create($file->getFullPath(), $file->getComponentName());
    }
    return $result;
}

/**

* Retrieve files

* @param \Magento\Framework\View\Design\ThemeInterface $theme

* @param string $filePath

* @return \Magento\Framework\View\File[]

public function getFiles(ThemeInterface $theme, $filePath)

{

$result = [];

$sharedFiles = $this->componentDirSearch->collectFilesWithContext(

ComponentRegistrar::MODULE,

"view/base/{$this->subDir}{$filePath}"

);

foreach ($sharedFiles as $file) {

$result[] = $this->fileFactory->create($file->getFullPath(), $file->getComponentName(), null, true);

}

$area = $theme->getData('area');

$themeFiles = $this->componentDirSearch->collectFilesWithContext(

ComponentRegistrar::MODULE,

"view/{$area}/{$this->subDir}{$filePath}"

);

foreach ($themeFiles as $file) {

$result[] = $this->fileFactory->create($file->getFullPath(), $file->getComponentName());

}

return $result;

}

Here we can find something interesting. Let’s learn how XML files are collected:

...
$sharedFiles = $this->componentDirSearch->collectFilesWithContext(
           ComponentRegistrar::MODULE,
           "view/base/{$this->subDir}{$filePath}"
    );
…
$area = $theme->getData('area');
       $themeFiles = $this->componentDirSearch->collectFilesWithContext(
           ComponentRegistrar::MODULE,
           "view/{$area}/{$this->subDir}{$filePath}"
    );
...

...

$sharedFiles = $this->componentDirSearch->collectFilesWithContext(

ComponentRegistrar::MODULE,

"view/base/{$this->subDir}{$filePath}"

);

…

$area = $theme->getData('area');

$themeFiles = $this->componentDirSearch->collectFilesWithContext(

ComponentRegistrar::MODULE,

"view/{$area}/{$this->subDir}{$filePath}"

);

...

Where:

$area – frontend
$this->subDir – ui_componen/
$filePath – etc/definition.xml

First of all, we get the XML file of the pathway “view/base/ui_componen/etc/definition.xml”. Then it’s necessary to get the XML file of the pathway “view/frontend/ui_componen/etc/definition.xml”.

The method collectFilesWithContext of the class Magento\Framework\Component\DirSearch gets the list of files in the definite directory back. Even a needed file can be given back, as in our case. As a result, we have “view/base/ui_component/etc/definition.xml” file in $sharedFiles array. While $themeFiles array is empty, as the file has not been created on the way. Therefore, we get a file where all UI components have a base declaration.

Magento Webdesign

Take your online store to the next level with BelVG Magento webdesign

Visit the page

It’s high time to return to the method _loadFileLayoutUpdatesXml we started with. The following line is in it:

...
$updateFiles = array_merge($updateFiles, $this->pageLayoutFileSource->getFiles($theme, '*.xml'));
...

...

$updateFiles = array_merge($updateFiles, $this->pageLayoutFileSource->getFiles($theme, '*.xml'));

...

Since we know the whole pathway consisting of some getFiles methods, let’s jump of Magento/Framework/View/File/Collector/Base::getFiles

Now we get XML of not a definite XML file, but all XML files in the directory “view/base/layout/”.

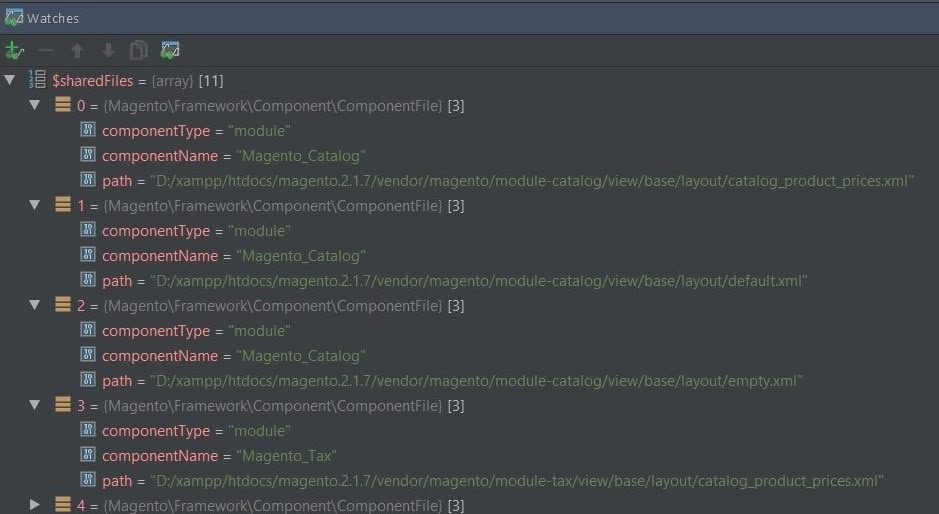

Let’s have a look at the screenshots and define what is contained in $sharedFiles:

As a result, we get XML files of the directory “view/frontend/layout/”. Let’s look at the second screenshot and define what is contained in $themeFiles:
